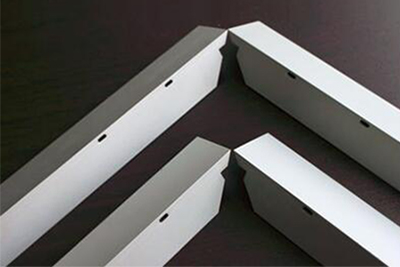

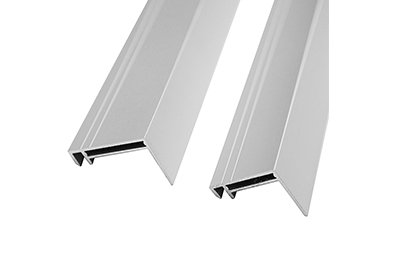

Aluminum PV Solar Frame
  • Aluminum PV Solar Frame
  • Aluminum PV Solar Frame
  • Aluminum PV Solar Frame

Introduction:

Contact us

Product Description


1.Material:6063,6061

2.Temper:T5,T6

3.Treatment: Silver or Black anodized

4.Specifications: As required

5.Fabrication:Cutting,Drilling,Punching,Milling etc.

6.Package:Inner plastic paper interleaving each profile, outer fixed by plywood or pallets, or as required

7.Certification:ISO 9001:2015;ISO14001:2015;SGS


Technical Data

1)Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest


2)Mechanical property

Alloy Temper Tensile strength Yield strength Elongation
6063 T5 ≥160Mpa ≥110Mpa ≥8%
T6 ≥205Mpa ≥180Mpa ≥8%
6061 T6 ≥265Mpa ≥245Mpa ≥8%


3)Anodized

Grade Anodizing thickness Hole sealing quality of oxide layer
Average thickness Local thickness Acid immersion weight less method
AA10 ≥10um ≥8um ≤30mg/d m²
AA15 ≥15um ≥12um
